Description

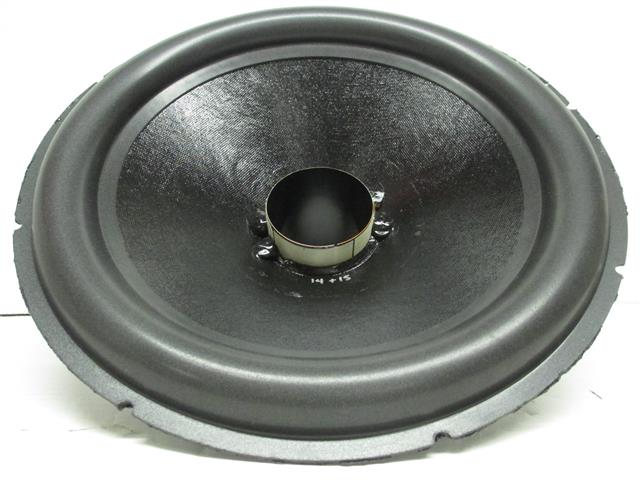

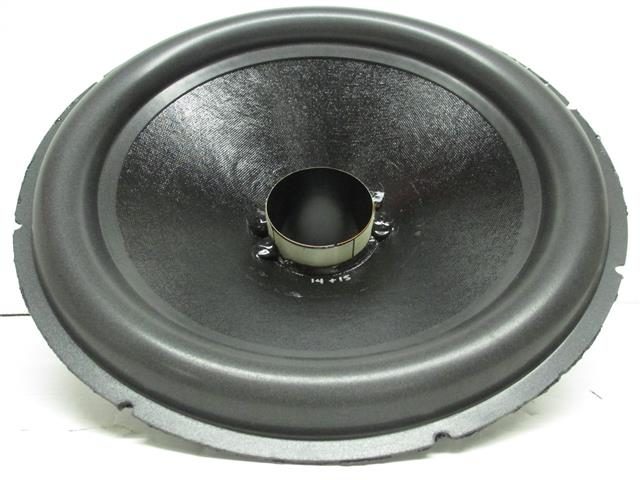

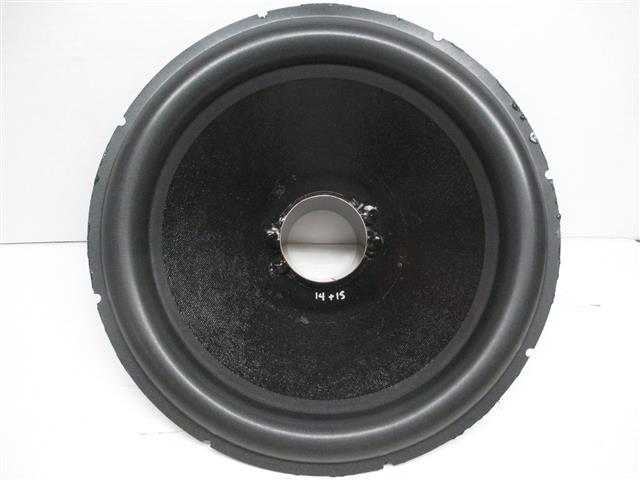

These recone kits were built for the Massive QC 15″ series subwoofers. This series uses the 12 spoke frame, but it is the version that has the extra wide spider landing. This recone will not fit the standard 12 spoke frame correctly.
These kits were actually glued into the frames but were quickly removed due to the impedance not being correct for the application. There is glue on the rear of the surround and spiders, but would not affect the performance or fit of the kits. These are very usable.
These are being sold as is, no warranty.
These would work best with around 1000 Watts RMS power. The recommended enclosure size is 4 ft.³ per subwoofer with a tuning of 32 Hz.
Cone Size: 15″
Set up for: Massive QC 15″. No spacers between motor and frame.
Distance from Spider Landing to Center of Coil: 43 mm

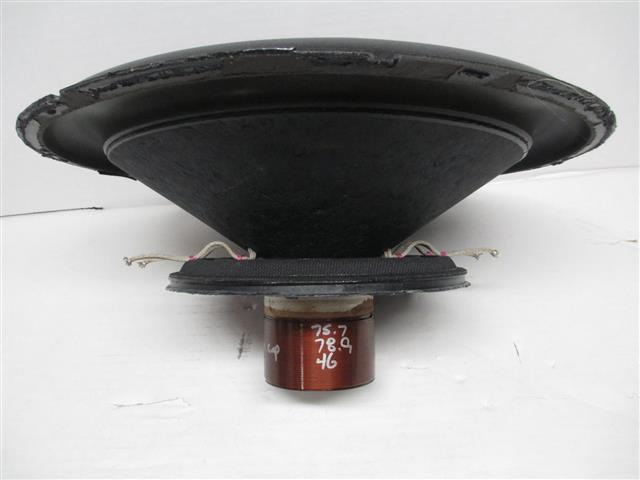

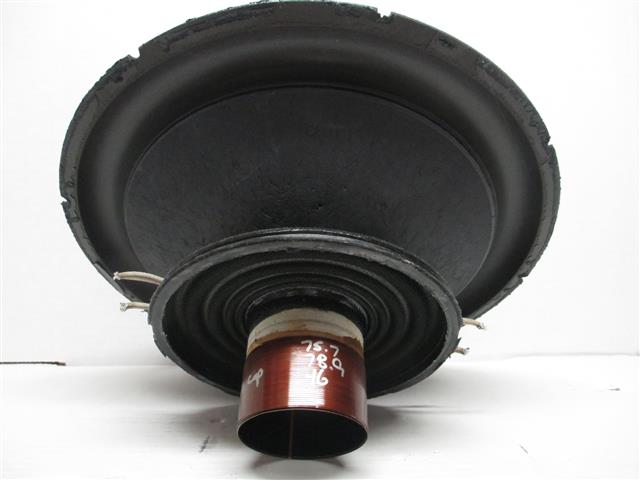

Coil Specs : 75.7 mm ID x 78.9 mm OD 46 mm Winding Length
Coil Material: Copper Flatwire
Coil Impedance: Dual ohms (0.9 ohms DC each coil)
Spiders: (2) 8″ Stiff Progressive Roll
Leadwire: Dual Sewn Heavy Duty
Connection: None
Cone: 15″ HD Pulp w/ Wide Roll Surround
Dustcap: Not Included – Purchase Separately

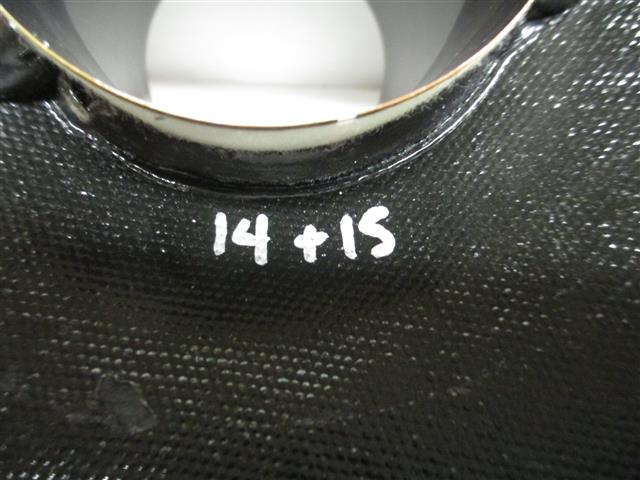

#14 15
