Description
This is a recone kit that was built but never used. There is nothing wrong with this recone kit. We have just not found a home for it, so we decided to let someone else
This is being sold as is, no warranty.
Cone Size: 18″
Set up for: 6 spoke 18″ frame with 15-18 mm top plate thickness. No spacers between motor and frame.
Distance from Spider Landing to Center of Coil: 46 mm

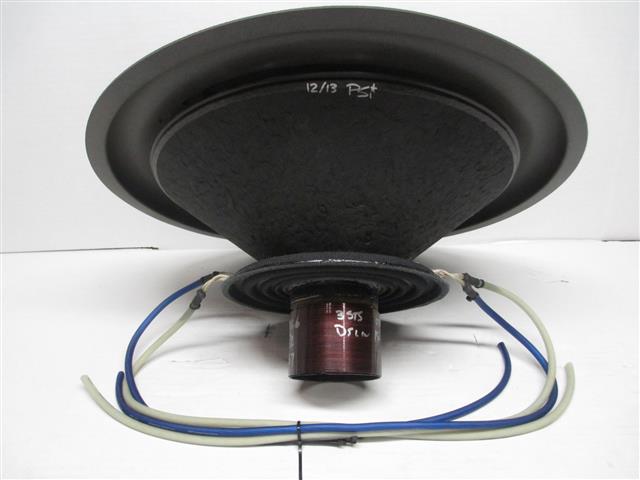

Coil Specs : 76.7 mm ID x 83 mm OD x 68 mm Winding Length
Coil Material: Aluminum Flatwound
Coil Impedance: Dual 2 ohms (1.4 ohms DC each coil)
Spiders: (3) 8″ Stiff Progressive Roll
Leadwire: Dual Sewn Heavy Duty
Connection: 8gauge XS-Flex Direct Connect

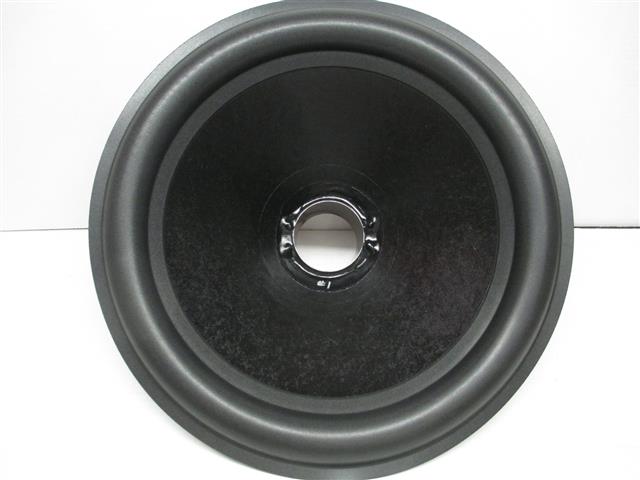

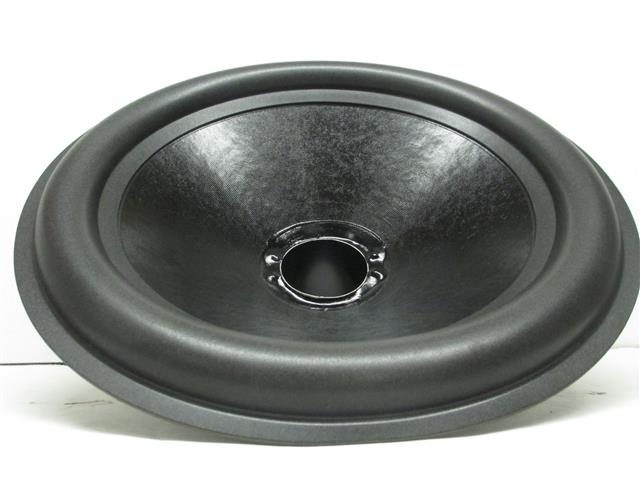

Cone: 18″ HD Pulp w/ Wide Roll Surround
Dustcap: Not Included – Purchase Separately

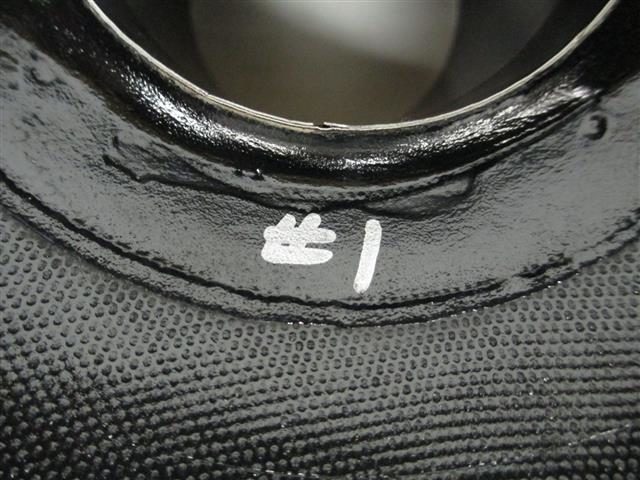

#1
